Tally Mesh

Tally Mesh Plotting

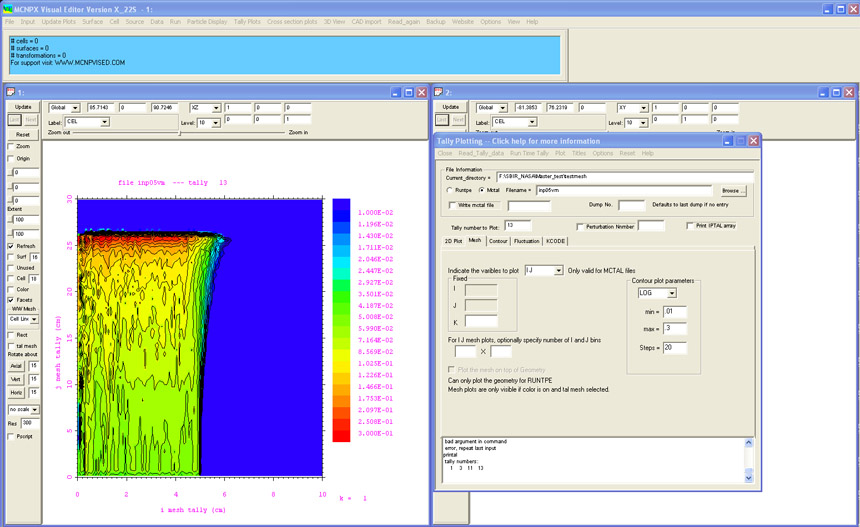

The Visual Editor can show the tally mesh for input files that contain a tally mesh. The plot on the left is a Tmesh. The plot on the right is Fmesh.

Tally Mesh 2

Tally Mesh 3

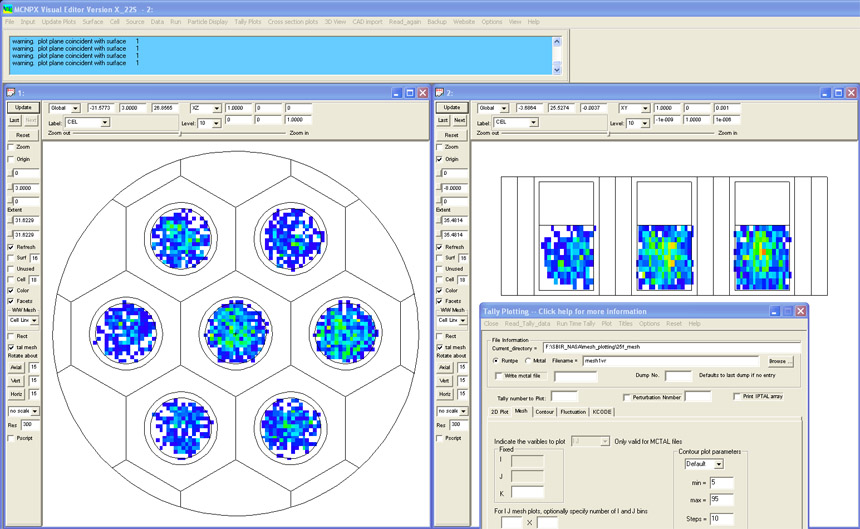

The plot above shows a mesh on top of a geometry.
