Surface Wizard 1

Surface Wizard

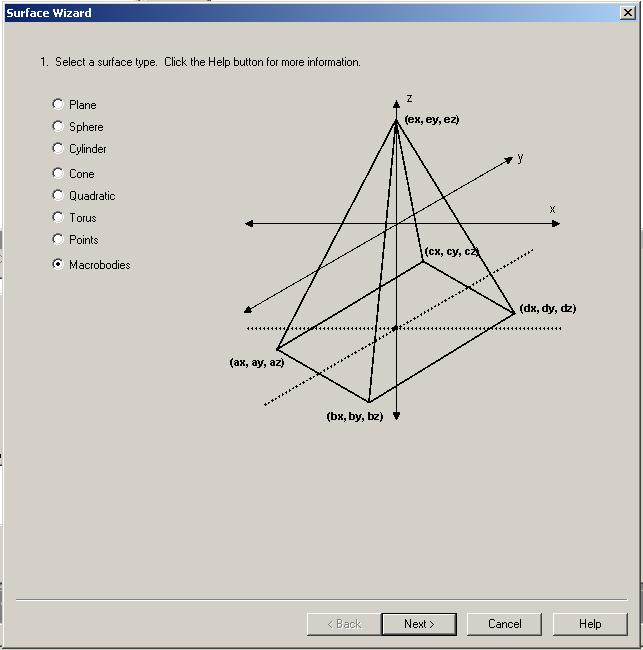

The Visual Editor has a Surface Wizard that assists in the creation of surfaces. Above is the first panel of the Surface Wizard. In this case, the user selected to create a macrobody. This example is in the Help for the Surface Wizard

Surface Wizard 2

The image above shows the creation of an Arbitrary Polyhedron (ARB).

Surface Wizard 3

The image above shows the third panel of the surface wizard for the creation of an ARB. The values for the parameters are entered in the appropriate boxes.

Surface Wizard 4

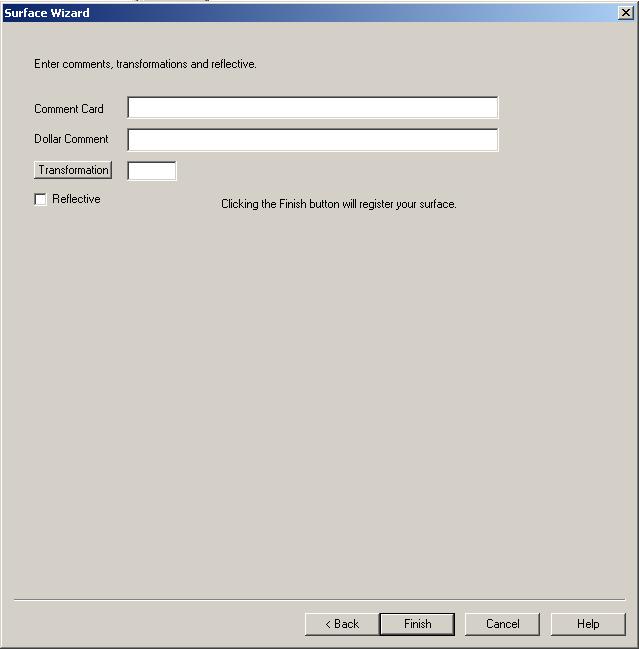

Comment cards or dollar comments may be entered.  A transformation can be applied.  The surface can be designated as reflective.
