Source Point Plotting

Training and Consulting

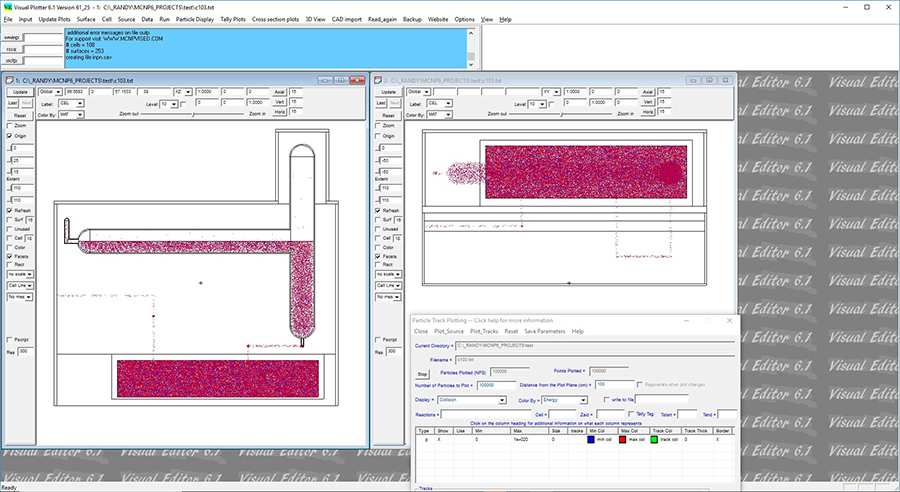

The image shows a plot of source points within a glove box for an sdef source. This is a plot of 100,000 source points. Notice source points are visible for source geometry that is outside the plot plane. The distance from the plot plane is set to 100 allowing source points within 100 centimeters of the plot plane will be projected onto the plot plane.
